verview

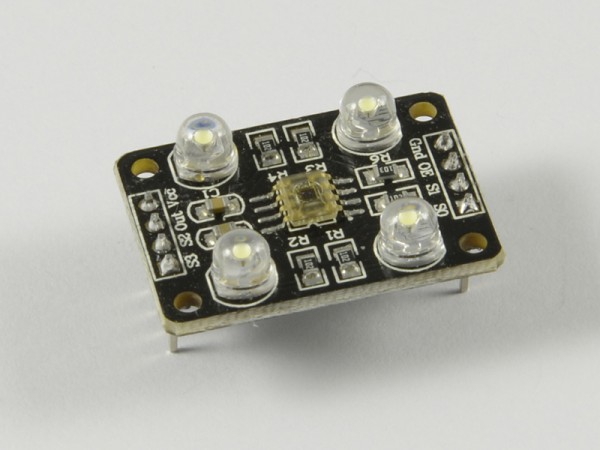

Sensor Chip: TCS3200 (RGB color detector)
Detects static color, the output is a square wave with frequency directly proportional to incident light intensity
Supports fill-light by onboard LEDs
Specifications
Power: 2.7V ~ 5.5V
Ideal detection distance: 10mm
Dimension: 36.0mm * 20.6mm
Mounting holes size: 2.0mm
Applications
Sorting by color
Ambient light sensing and calibration
Test strip reading
Color matching
How to Use
In the case of working with a MCU:
VCC : 2.7V ~ 5.5V
GND : power supply ground
LED : MCU.IO (controlling the 4 white LEDs)
OUT : MCU.IO (RGB color output frequency)
S0/S1 : MCU.IO (Output frequency scaling selection inputs)
S2/S3 : MCU.IO (Photodiode type selection inputs)
S0/S1 selects the output frequency scaling factor, S2/S3 selects the color filter of red, green, blue, then OUT outputs a square wave with frequency proportional to the selected color intensity. The detected color can be determined by the ratio of the intensity of red, green and blue.
Note:
Avoids environment light noise
White balance is required when the first time using the module, reseting the module, or changing the light source
