LoRa MCF88 LoRaWAN Davis to LoRaWAN® interface Kit 868 MHz Wetterstation

LoRa MCF88 LoRaWAN Davis to LoRaWAN® interface Kit 868 MHz Wetterstation

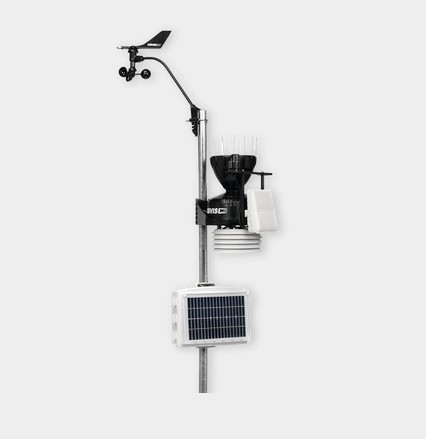

mcf16 integrates a LoRaWAN® communication system in a Davis Instruments Vantage Pro2 Weather Station. The station, rugged and flexible, is equipped with a wide range of sensors and it offers reliable weather data under the most demanding circumstances and gives these variables:

- Inside and Outside Temperature and Relative Humidity
- Barometric Pressure
- Rainfall
- Dew Point
- Wind Speed and Direction sensors (detachable)
- Solar radiation
- PM1, PM2.5, PM10 (only available in MCF-LW06DAVKP)

MCF-LW06DAVK can be installed in an existing Davis Vantage Pro2 station. This allows to upgrade the station to a LoRaWAN® connectivity. Further, the MCF-LW06DAVKP kit adds a PM measurement system to the existing station. These kits include all necessary hardware to be installed in the station.


Smart Agricolture
Industry
Smart City
Waste station control

Technical Data:

- Wind Direction 0°- 360° 3°
- Temperature range -40°C + 65°C 0.3°C
- Relative Humidity from 0% to 100% 2%
- Atmospheric pressure from 880 to 1080 hPa 1hPa
- Rain range 0 to 6553 mm 4%
- Solar Radiation 0 -1800W/mq 5%
- PM sensor PM1PM2.5PM10 15%
- Data transmission Class A LoRaWAN® stack @868MHz
- 5W Solar panel powered with 12AH battery, 6V
- Mounting Tripod with Lag Bolts
