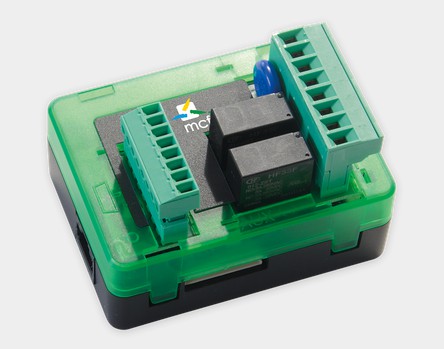

LoRa MCF88 LoRaWAN Serial to LoRaWAN® interface with Input/ Output capability

This interface can be connected via RS232 serial port to send and receive data through the LoRaWAN® platform. The device has a serial proprietary mcf168 protocol (available on request).

The interface has five opto isolated inputs (4 working with low voltage, one working at 230VAC) and 2 relay outputs.

Applications:


Remote industrial interface
Remote process supervisor
Datalogger

Technical Data:


CPU Cortex M4
RTC
EEProm 32KB
Flash 1MB
Encryption AES 128 bit
LiPo rechargeable battery
Class C LoRaWAN® stack @868MHz
Serial interfaces: RS232
USB On The Go
IoT node setup ad firmware upgrade via USB interface
4 opto-isolated inputs working range 5-24Vac/dc
1 opto-isolated input working at 230Vac
2 relay output with COM, NO, NC contacts carrying 5Amp@230Vac
External power supply 10-36Vdc
Storage temperature range -20 + 80 °C
Working temperature range -10 + 70 °C
Dimensions L x H X P: 81 x 60 x 24mm
